Product Information
Categories: BURNERS, OVENPAK 1MAXON observation glass allows for proper viewing of flame quality through the back plate of the burner. Includes two (2) sealing o-rings and is available in standard plexiglass or high temperature Quartz models.
Related Products
BLOWER MOTOR – OVENPAK 2
MAXON blower motors are available in with the following voltages:
230/460/3/60
575/3/60
115/1/60
MAXON IMPELLER – OVENPAK 1
MAXON combustion air impellars are built specifically for the Ovepak series of burners. Aluminum die cast, radial blade and balanced for mounting in MAXON integral combustion air blowers, the impellars are available in both ANSI and ISO models.

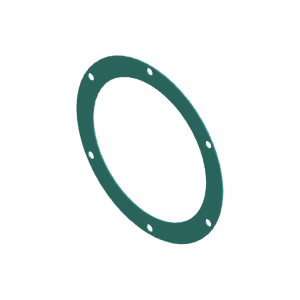

HOUSING GASKET – OVENPAK 2
MAXON housing gasket is to be installed between the two (2) main casing sections of the burner. Designed to provide an airtight seal between the casing pieces, this gasket should provide a worry free seal under a variety of environmental conditions. The gasket is considered a consumable item and should be replaced during regularly scheduled burner maintenance.
GUIDE TUBE – OVENPAK 2
MAXON guide tubes allow for the simple installation of either UV flame detection cells of flame rods. Designed to penetrate through the entire burner to visualize the flame directly of the nozzle tip, the carbon steel guide tubes are available with either NPT or TEC end connections.
MAXON GUIDE TUBE – OVENPAK 1
MAXON guide tubes for the Ovenpak 1 allow for the simple installation of either UV flame detection cells of flame rods. Designed to penetrate through the entire burner to visualize the flame directly of the nozzle tip, the carbon steel guide tubes are available with either NPT or TEC end connections.

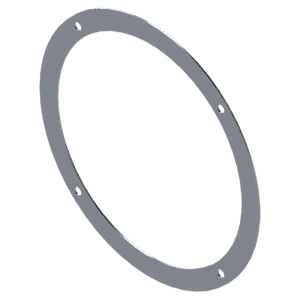

OVEN WALL GASKET – OVENPAK 1
Maxon oven wall gasket is to be installed in between the burner firing sleeve and your furnace oven wall. Designed to provide an airtight seal between the inside and outside of your combustion chamber. The gasket is considered a consumable items and should be replaced during regularly scheduled burner maintenance.
MOTOR BRACKET – OVENPAK 2
MAXON Connecting brackets and linkage assemblies are available in 4 main versions:
- Maxon SMARTLINK DS drive motors.
- Honeywell MODUTROL drive motors.
- Honeywell HERCULINE drive motors.
- Barber-Colemand drive motors.
Special assemblies can also be engineering upon request.
OBSERVATION GLASS – ROUND – OVENPAK 2
MAXON observation glass allows for proper viewing of flame quality through the back plate of the burner. Includes two (2) sealing o-rings and is available in standard plexiglass or high temperature Quartz models.

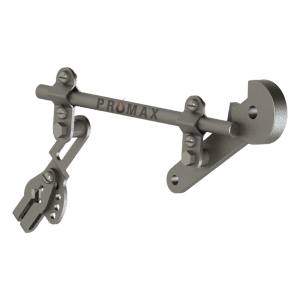

LINKAGE KIT – OVENPAK 2
MAXON linkage kits allow for the direct coupling of the internal air/gas butterfly valves of the Ovenpak 2 burner series.
The kit includes:
- Butterfly dics
- Linkage arms
- Pins
- Seals
- And bushings to allow fo the complete replacement of the control internals.

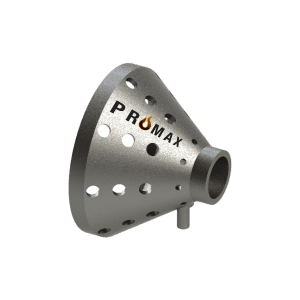

MIXING CONE – OVENPAK 2
"MAXON mixing cones are availble in 3 versions:
- Standard cast iron mixing cone, suitable for most process applications.
- Excess air cast iron mixing cone, allowing +/-10% more air through the burner with the same overall pressure drop.
- Stainless steel mixing cone, suitable for high temperature or highly corrosive applications.
